CPBD408-0101F

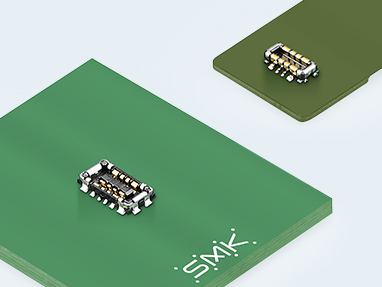

FB-10
Board to FPC Connectors
RoHS Compliant
Technical Information Data
Specification
| Features | 1. Large current connector for battery. 2. Highly reliable and stable connection using SMK´s unique contact structure. 3. High retention force by SMK´s unique locking mechanism on the contact terminal and hold-down. 4. Power terminal supports 6A current (when using 4pins for power). 5. Multiple pin count with 8pins satisfies the need of multifunctional battery (Power : 4Pin, Signal : 4Pin). 6. Low profile and space-saving design with 0.6mm mating height, 1.7mm width and 3.2mm depth. 7. Country of Origin：Japan |
|---|---|
| Application | Smartphone, Tablet PC, PC, Wearables, Mobile devices |
| Plug/Socket | Plug |
| Pitch | 0.35mm |
| Number of Pins | 8 (Power：4Pin, Signal：4Pin) |
| Dimention | Length: 2.48mm Width: 1.4mm Height: 0.49mm |
| Mating Height | 0.6mm |
| Mounting Style | SMT |
| Mounting Direction | Straight |
| Rated Voltage AC/DC | 20V AC/DC, 3.0A/pin (Power), 0.3A/pin (Signal) |
| Contact Resistance | 20mΩ max.(Power Pin), 40mΩ max.(Signal Pin) |
| Insulation Resistance | 1000MΩ min. at 100V DC |
| Withstanding Voltage | 100V AC (for one minute) |
| Operating Temperature Range | -25℃ to +85℃ |
| Packaging | Embossed Taping (15000 pcs / reel) |
Material and Plating
| Plug Housing | Thermoplastic Resin |
|---|---|
| Plug Contact | Cu Alloy, Au Plating |
| Plug Hold Down | Cu Alloy, Au Plating |
