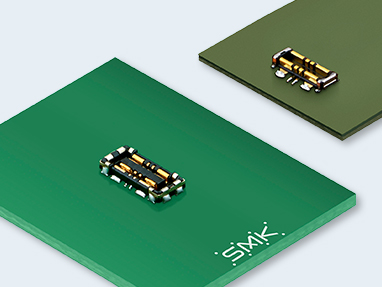

FB-9
Board to FPC Connectors
Features
1. Large current connector for battery.
2. Highly reliable and stable connection using SMK´s unique contact structure.
3. High retention force by SMK´s unique locking mechanism on the contact terminal and hold-down.
4. Power terminal supports 15A current (when using 4pins for power).
5. Multiple pin count with 8pins satisfies the need of multifunctional battery (Power : 4Pin, Signal : 4Pin).
6. Low profile design with 0.7mm mating height, 2.2mm width and 4.95mm depth.
7. Country of Origin：Japan
Specification
- Pitch
- 0.4mm
- Number of Pins
- 8 (Power:4Pin, Signal:4Pin)
- Mating Height
- 0.7mm
- Width
- 2.2mm(Socket)
- Mounting Style
- SMT
- Mounting Direction
- Straight
- Rated Voltage AC/DC
- 50V AC/DC, 7.5A/pin (Power) , 1.5A/pin (Signal)
- Contact Resistance
- 5mΩ max.(Power Pin), 30mΩ max.(Signal Pin)
- Insulation Resistance
- 100MΩ min. at 100V DC
- Withstanding Voltage
- 100V AC (for one minute)
- Operating Temperature Range
- －40℃ to ＋85℃
Material and Plating
- Socket Housing
- Thermoplastic Resin
- Socket Contact
- Cu Alloy, Au Plating
- Socket Hold Down
- Cu Alloy, Au Plating
- Plug Housing
- Thermoplastic Resin
- Plug Contact
- Cu Alloy, Au Plating
- Plug Hold Down
- Cu Alloy, Au Plating
Application
Smartphones, Tablet, PC, Wearables, Mobile devices
