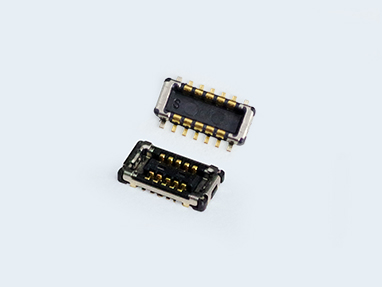

RB-1
RF Board to Board Connectors
RoHS Compliant
Features
1. Low profile and small sizing design: 0.6mm mating height, 0.6mm width, and 0.35mm pitch.
2. Pin count：10, 12, 14
3. Frequency ranges coverage from DC to 12GHz with good RF performance.
4. Easy mating with high robustness by metal shell on plug and socket.
5. Checking frequency amount available with floating designed coaxial probe.
6. Country of Origin：Japan
2. Pin count：10, 12, 14
3. Frequency ranges coverage from DC to 12GHz with good RF performance.
4. Easy mating with high robustness by metal shell on plug and socket.
5. Checking frequency amount available with floating designed coaxial probe.
6. Country of Origin：Japan
Specification
- Pitch
- 0.35mm
- Number of Pins
- 10, 12, 14
- Mating Height
- 0.6mm
- Width
- 2.1mm(Socket)
- Mounting Style
- SMT
- Mounting Direction
- Straight
- Rated Voltage AC/DC
- 20V AC/DC, 0.5A
- Contact Resistance
- 30mΩ max.
- Insulation Resistance
- 100MΩ min. at 100V DC
- Withstanding Voltage
- 100V AC (for one minute)
- Operating Temperature Range
- －55℃ to ＋85℃
Material and Plating
- Socket Housing
- Thermoplastic Resin
- Socket Contact
- Cu Alloy, Au Plating
- Socket Hold Down
- Cu Alloy, Au Plating
- Plug Housing
- Thermoplastic Resin
- Plug Contact
- Cu Alloy, Au Plating
- Plug Hold Down
- Cu Alloy, Au Plating
Application
Smartphones, Tablet, PC, Wearables, Mobile devices
