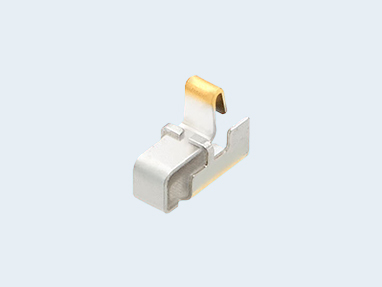

ET-20
Earth Terminal
RoHS Compliant
Features
1. The earth terminals are of a low contact pressure type with electro-conductivity coated shell molds.
2. Designed for SMT operations, supply on embossed tapemakes it possible to mount the terminals automatically.
3. Low contact pressure allow for multiple use of the terminals.
4. Compact and light-weight equipment design can be realized with the terminals.
5. Custom needs are available.
6. Country of Origin：China
Specification
- Contact
- Top
- Height
- 2.5mm
- Operating Height
- 1.5～2.3mm
- Contact Pressure
- 0.25～1.90N
- Rated Voltage AC/DC
- 5V DC, 0.5A
- Contact Resistance
- 50mΩ Max.
- Operating Temperature Range
- －40℃ to ＋85℃
Material and Plating
- Contact
- Cu Alloy, Au Plating
Application
Automotive Equipment, Industrial Equipment, Home appliances, Amusement, Mobile devices
