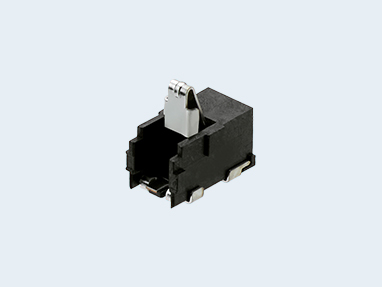

CPB5501-3000F

ET-M
Earth Terminals

RoHS Compliant
CPB5501-3000F
Product Inquiry

Specification

Features

1. Increases design flexibility by having wide working range.
2. Lowers risk of solder crack due to original structure which stress of the spring does not reach the soldered part directly.
3. Housing prevents contact deformation during assembly and maintains robustness.
4. Country of Origin：Japan
Application
Automotive Equipment, Industrial Equipment, Home appliances, Amusement, Mobile devices
Contact
Top
Height
5.0mm
Operating Height
3.2～4.5mm
Dimention
Length: 5.0mm Width: 2.9mm Height: 5.0mm
Contact Pressure
0.20～1.10N
Rated Voltage AC/DC
10V AC/DC, 3A
Contact Resistance
30mΩ Max.
Operating Temperature Range
-40℃ to +85℃
Packaging
Embossed Taping (2000 pcs / reel）

Material and Plating

Contact
Cu Alloy, Sn Plating
Housing
Thermoplastic Resin
