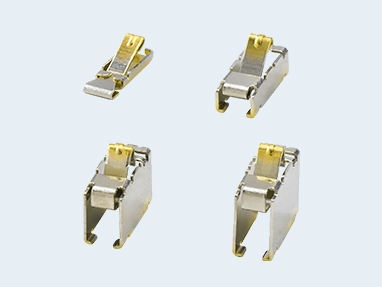

RT
Earth Terminal ROBUST™ Type
RoHS Compliant
Features
1. Its unique structure prevents contact deformation.
2. We have prepared a lineup with the same spring shape but with varying heights that can be adjusted by changing the height of the side area.
3. Due to the common board pattern, height differences can easily be reset.(415CPB-167-XXF, 415CPB-168-XXF)
4. The space provided between the mounting and spring areas prevents solder lifting.
5. The embossed taping for the automatic mounter by SMT is available.
6. Country of Origin：China
2. We have prepared a lineup with the same spring shape but with varying heights that can be adjusted by changing the height of the side area.
3. Due to the common board pattern, height differences can easily be reset.(415CPB-167-XXF, 415CPB-168-XXF)
4. The space provided between the mounting and spring areas prevents solder lifting.
5. The embossed taping for the automatic mounter by SMT is available.
6. Country of Origin：China
Specification
- Contact
- Top
- Height
- 1.0～3.4mm(Depends on the figure number. For details, please refer to product detail page.)
- Operating Height
- 0.45～3.2mm (Depends on the figure number. For details, please refer to product detail page.)
- Contact Pressure
- 0.25～1.0N (Depends on the figure number. For details, please refer to product detail page.)
- Rated Voltage AC/DC
- Please refer to the page of each part number.
- Contact Resistance
- 50mΩ max.
- Operating Temperature Range
- －40℃ to ＋85℃
Material and Plating
- Contact
- Cu Alloy, Au Plating
Application
Smartphones, Tablet, PC, Wearables, Mobile devices
