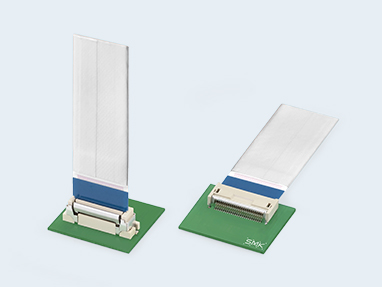

EA-51
0.5mm Pitch One Action FPC / FFC Connectors
RoHS Compliant
Features
1. One action FPC/FFC lock system suitable for robotic assembly contributes to automation of the manufacturing process.
2. Able to check the condition of FPC/FFC insertion through windows at the top of the connector. (Right angle type only)
3. Since the lever is made of SUS with high rigidity, when the FPC/FFC is pulled out by force, even if the FPC/FFC is broken, the connector itself will not be deformed or broken.
4. Compatible with FPC, FFC, and shielded FPC.
(Applicable thickness: Signal 0.3mm / Ground 0.5mm)
5. Pin count：Right Angle Type 20, 25, 30, Vertical Type 25.
6. Country of Origin：China
2. Able to check the condition of FPC/FFC insertion through windows at the top of the connector. (Right angle type only)
3. Since the lever is made of SUS with high rigidity, when the FPC/FFC is pulled out by force, even if the FPC/FFC is broken, the connector itself will not be deformed or broken.
4. Compatible with FPC, FFC, and shielded FPC.
(Applicable thickness: Signal 0.3mm / Ground 0.5mm)
5. Pin count：Right Angle Type 20, 25, 30, Vertical Type 25.
6. Country of Origin：China
Specification
- Pitch
- 0.5mm
- Number of Pins
- Right angle type:20, 25, 30, Vertical type:25
- Contact
- Right angle type：Lower Contact, Vertical type：One-sided
- Mounting Style
- SMT
- FPC/FFC Insertion Direction
- Straight, Right Angle
- Mounting Height
- Right angle type：3.2mm, Vertical type：6.35mm
- Applicable FPC/FFC Thickness
- Signal：0.3mm, Ground：0.5mm
- FPC/FFC Connection
- Non-ZIF
- Rated Voltage AC/DC
- 50V AC/DC, 0.4A
- Contact Resistance
- 40mΩ max.
- Insulation Resistance
- 50MΩ min. at 500V DC
- Withstanding Voltage
- 500V AC (for one minute)
- Operating Temperature Range
- －20℃ to ＋80℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy, Au Plating
- Lever
- Stainless Steel , Sn Plating
Application
Home appliances, Amusement, Industrial Equipment, Mobile Equipment
