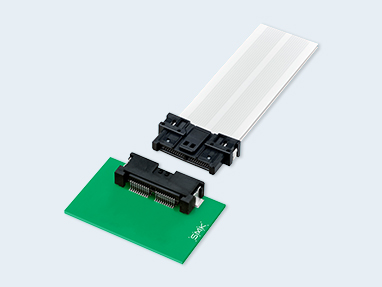

FV-1B
2 Piece Type FPC/FFC Connectors
Features
1. Has a two-piece structure which locks using receptacle and plug housing.
2. Highly reliable and stable connection using SMK's original contact structure.
3. Low profile design with 8.0mm mating height.
4. The housing cover prevents direct touch with FPC/FFC PAD surface when mating.
5. A cover is potional to the soldering area as a foreign object prevention measure for the board/FPC mounting area.
6. Country of Origin：China
･Part number XX：Differs by key codes. Please contact us for more information.
Specification
- Pitch
- 1.0mm
- Number of Pins
- 40
- Contact
- Upper and lower contacts
- Mounting Style
- SMT
- FPC/FFC Insertion Direction
- Right Angle
- Mounting Height
- 8mm
- Applicable FPC/FFC Thickness
- 0.3mm
- FPC/FFC Connection
- Non-ZIF
- Rated Voltage AC/DC
- 100V DC, 1A
- Contact Resistance
- 30mΩ max.
- Insulation Resistance
- 100MΩ min. at 500V DC
- Withstanding Voltage
- 500V AC (for one minute)
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy, Au Plating
- Lever
- －
- Hold Down
- Cu Alloy, Sn Plating
Application
Automotive Equipment, Industrial Equipment
