USCAR-30

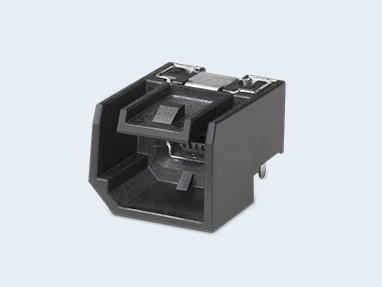

5 Pins Connectors for USCAR-30 Standards
RoHS Compliant
Features
1. Conforms to the USCAR-30 standard.
2. Conforms to the USB2.0 standards.
3. Integrating a case and hold-down mechanism with the connector allows it to be mounted in once, helping to simplify mounting work and improve assembly workability.
4. Automatic mounting available with a vacuum space.
5. Rich color variation and different key codes are available. (Please contact for details.)
6. Country of Origin：China
2. Conforms to the USB2.0 standards.
3. Integrating a case and hold-down mechanism with the connector allows it to be mounted in once, helping to simplify mounting work and improve assembly workability.
4. Automatic mounting available with a vacuum space.
5. Rich color variation and different key codes are available. (Please contact for details.)
6. Country of Origin：China
Specification
- Industrial Standard
- USCAR-30, USB2.0
- Number of Pins
- 5
- Pitch
- 0.8mm
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- Reflow DIP (Contact：SMT)
- Mounting Direction
- Right Angle
- Locking Style
- Full-locking
- Plug Shape
- －
- Rated Voltage AC/DC
- 5V DC (RMS), 1.5A
- Contact Resistance
- 50mΩ max.
- Insulation Resistance
- 100MΩ min. at 100V DC
- Withstanding Voltage
- 100V AC (for one minute)
- Operating Temperature Range
- －40℃ to ＋85℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy, Au Plating
- Shield
- Cu Alloy, Sn Plating
Application
Automotive Equipment, Industrial Equipment, Medical Device
