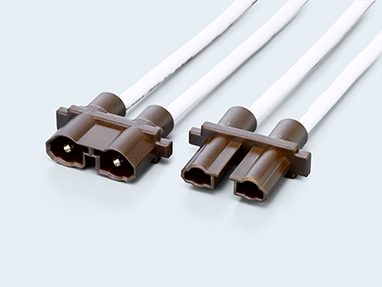

LC-3
Lamp Connectors
RoHS Compliant
Features
1. This is a high-voltage connector for lamps capable of handling an DC voltage of up to 25kV(peak).
2. This compact connector design is an ideal choice for downsized equipment.
3. Country of Origin：Japan(Harness products：Japan, China)
2. This compact connector design is an ideal choice for downsized equipment.
3. Country of Origin：Japan(Harness products：Japan, China)
Specification
- Mounting Direction
- －
- Rated Voltage AC/DC
- 250V AC/DC, 10A
- Contact Resistance
- 20mΩ max.
- Insulation Resistance
- 1000MΩ min. at 500V DC
- Withstanding Voltage
- 25kV DC (for one minute)
- Operating Temperature Range
- －20℃ to ＋150℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy
Application
Lighting equipment
