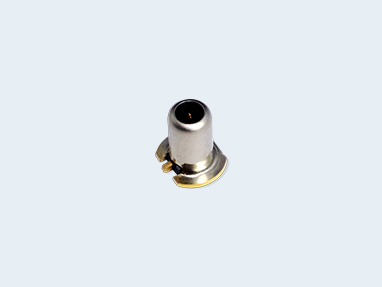

CRC5001-8301F

CM-S
Coaxial Connectors for Automotive Camera Module (Small Type)

RoHS Compliant
CRC5001-8301F
Product Inquiry

Specification

Features

1. This is a connector for high pixel type automotive camera modules.
2. Covers a wide operating frequency range from DC to 3GHz, and achieves excellent high frequency performance.
3. Straight and right angle types of plugs are available.
4.  Conversion adaptor to convert Fakra coaxial connector is also available.
5. Floating Structure with matimg alignment：±0.25mm
6. Country of Origin：China

・For details on conversion adapters, please refer to the PDF catalog.
Application
Automotive Camera
Type
External Connector for Automotive device
Plug/Receptacle
Receptacle
Frequency Range
DC to 3GHz
Nominal Impedance
50Ω
V.S.W.R.
1.3max.(DC to 1GHz), 1.5max.(1 to 3GHz)
Insertion Loss
1.3dBmax.(DC to 3GHz)
Dimention
Outside diameter: φ5.5ｍｍ Height: 5.74mm
Mounting Height
5.74mm
Waterproof / Non-waterproof
Non-waterproof
Mounting Direction
Straight
Rated Voltage AC/DC
250V AC, 1.5A
Contact Resistance
20mΩ Max.
Operating Temperature Range
－40℃ to ＋105℃
Mating Cycle Life
1000 cycles
Packaging
Embossed Taping (1000 pcs / reel）

Material and Plating

Terminal
Cu Alloy, Au Plating
