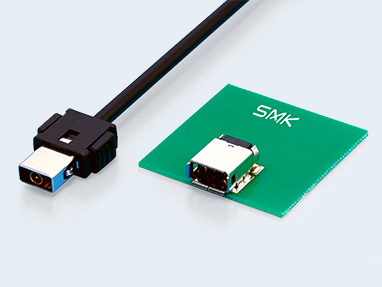

TC-25
Rectangular Coaxial Connectors
RoHS Compliant
Features
1. Rectangular coaxial connector of SMT design.
2. The operating frequency ranges extensively from DC to 6GHz with good RF performance.
3. Low profile and small of 4.5mm mounting height and 9mm width, 11mm length.
4. A metal locking system structure is used for receptacle and plug mating, ensuring high mating retention.
5. It features a low insertion force of 20N or less, improving usability.
6. Embossed taping for automatic mounter.
7. Country of Origin：China
For Converting Adapter ：CRS1001-2601F,CRC1001-5301F,
please refer to the catalog pdf
2. The operating frequency ranges extensively from DC to 6GHz with good RF performance.
3. Low profile and small of 4.5mm mounting height and 9mm width, 11mm length.
4. A metal locking system structure is used for receptacle and plug mating, ensuring high mating retention.
5. It features a low insertion force of 20N or less, improving usability.
6. Embossed taping for automatic mounter.
7. Country of Origin：China
For Converting Adapter ：CRS1001-2601F,CRC1001-5301F,
please refer to the catalog pdf
Specification
- Type
- External Connector
- Frequency Range
- DC to 6GHz
- Nominal Impedance
- 50Ω
- V.S.W.R.
- 1.5max. (DC to 6GHz)
- Insertion Loss
- 2.5dB max.(5.8GHz)(include the cable loss)
- Mounting Height
- 4.5mm (Receptacle)
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- SMT
- Mounting Direction
- Right Angle
- Rated Voltage AC/DC
- 250V AC r.m.s., 1A
- Contact Resistance
- 20mΩ max.
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Housing
- Thermoplastic Resin
- Terminal
- Cu Alloy, Au Plating
Application
Automotive Equipment
No applicable products
TC-25 Product List
--Result(s)
| Parts No. |
|
|
|
|
|
||
|---|---|---|---|---|---|---|---|
| ${item.field_plug_receptacle} | ${item.field_jisso_hoho} | ${item.field_jisso_hoko} | ${item.field_tekigo_cable} | ${item.field_bosui_kino} | |||
