CRS5001-4401F
TS-11

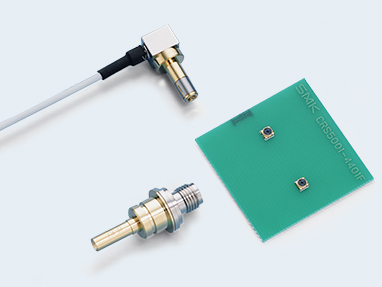

RF Coaxial Connectors with Switch (SMT)
RoHS Compliant
Technical Information Data
Specification
| Features | 1. DC to 6GHz coaxial connector with a switch. 2. Ultra small and low profile design of 0.95mm height, 2.4mm × 2.4mm mounting area and 0.015g in weight. 3. Embossed tape packaged for automatic mounting. 4. Considered tilting mating with plug condition by increasing retention force, etc. 5. Available for inspection plug. 6. Country of Origin： Receptacle－China, Plug－Japan Part number of plug Mating Type：CRC9001-6401F,Probe Type：CRC9001-6201F,Auto Floating Type：CRC9001-6602F |
|---|---|
| Application | Smartphone, Tablet PC, PC, Mobile devices |
| Type | Internal Connector with Switch |
| Plug/Receptacle | Receptacle |
| Frequency Range | DC to 6GHz |
| Nominal Impedance | 50Ω |
| V.S.W.R. | Normal close 1.3 max. (DC to 3GHz), 1.5 max. (3 to 6GHz) |
| Insertion Loss | Normal close 0.15dB max.(DC to 3GHz , 0.20dB max.(3 to 6GHz) |
| Dimention | Length: 2.4mm Width: 2.4mm Height: 0.95mm |
| Mounting Height | 0.95mm |
| Waterproof / Non-waterproof | Non-waterproof |
| Mounting Style | SMT |
| Mounting Direction | Vertical |
| Applicable Cable | － |
| Rated Voltage AC/DC | 100V AC/DC |
| Contact Resistance | 100mΩ Max. |
| Operating Temperature Range | -25℃ to +85℃ |
| Mating Cycle Life | 100 cycles |
| Packaging | Embossed Taping (3000 pcs / reel) |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Terminal | Cu Alloy, Au Plating |
