CRS5001-4201F

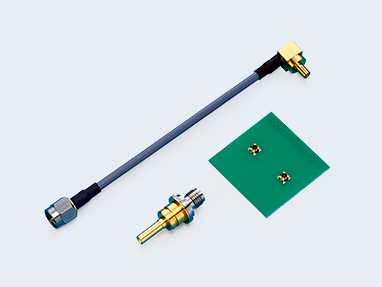

TS-7
RF Coaxial Connectors with Switch (SMT)

RoHS Compliant

Technical Information Data

3D model(STEP) 3D model(IGES) 3D model(Acrobat3D) 2D model(DXF)
Product Inquiry

Specification

Features
1. Coaxial connector with switch of vertical type.Can be used to inspect and measure the high frequency properties of mobile communication equipment.
2. The operation frequency ranges extensively from DC to 6GHz with good RF performance.
3. Low profile and space saving of 1.5mm mounting height and 2.9mm×2.9mm mounting area.
4. Available both a probe type for automatic inspection and mating type for manual inspection.
5. Mating type plug is a half-locking structure with positive click feeling.
6. Embossed taping for automatic mounter.
7. Country of Origin： Receptacle－China, Plug－Japan
Application
Smartphone, Tablet PC, PC, Mobile devices
Type
Internal Connector with Switch
Plug/Receptacle
Receptacle
Frequency Range
DC to 6GHz
Nominal Impedance
50Ω
V.S.W.R.
Normal close 1.3 max. (DC to 3GHz), 1.5 max. (3 to 6GHz)
Insertion Loss
Normal close 0.15dB max.(DC to 3GHz), 0.20dB max. (3 to 6GHz)
Dimention
Length: 2.9mm Width: 2.9mm Height: 1.5mm
Mounting Height
1.5mm
Waterproof / Non-waterproof
Non-waterproof
Mounting Style
SMT
Mounting Direction
Vertical
Applicable Cable
－
Rated Voltage AC/DC
100V AC/DC
Contact Resistance
100mΩ Max.
Operating Temperature Range
-25℃ to +85℃
Mating Cycle Life
100 cycles
Packaging
Embossed Taping (3000 pcs / reel)

Material and Plating

Housing
Thermoplastic Resin
Terminal
Cu Alloy, Au Plating
