VC-2

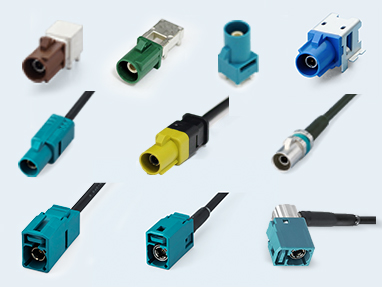

Coaxial FAKRA Connectors
Features
1. Complete connection is ensured by the push-on mold locking structure.
2. Key codes are available in different colors for different connection.
3. Complies with ISO20860-1,ISO20860-2,DIN72594-1,DIN72594-2,SAE/USCAR-17, and SAE/USCAR-18.
4. Waterproof type is also available (mating waterproof of IPX7).
Plug for PCB：CRC5001-74□□F
Cable Plug：CRC1001-57□□F
Cable Jack：CRS9001-45□□F, CRS9001-38□□F, CRS9001-46□□F, CZF2100-02□□F, CZF2100-03□□F, CZF2100-13□□F
5. Cable Jack : Multiple cable pull-out directions are available.
CRS9001-46□□F, CZF2100-02□□F, CZF2100-03□□F, CZF2100-13□□F
6. Reduces the piece part numbers and contributes to improving assembly workability.
7. Country of Origin：China
･Part No. XX：Differs by key codes and colors. Please contact us for more information.
･The CAD data part numbers are listed at the end 01F.
Specification
- Type
- External Connector for Automotive device?
- Frequency Range
- Please refer to the page of each part number.
- Nominal Impedance
- 50Ω
- V.S.W.R.
- Please refer to the page of each part number.
- Insertion Loss
- Please refer to the page of each part number.
- Mounting Height
- Please refer to the page of each part number.
- Waterproof / Non-waterproof
- Waterproof / Non-waterproof
- Mounting Style
- Please refer to the page of each part number.
- Mounting Direction
- Please refer to the page of each part number.
- Rated Voltage AC/DC
- 60V AC/DC, 1A
- Contact Resistance
- 15mΩ max. (center contact), 5mΩ max. (external contact)
- Operating Temperature Range
- －40℃ to ＋105℃
Material and Plating
- Housing
- Thermoplastic Resin
- Terminal
- Cu Alloy, Au plating
Application
Automotive Equipment, Industrial Equipment
