DC

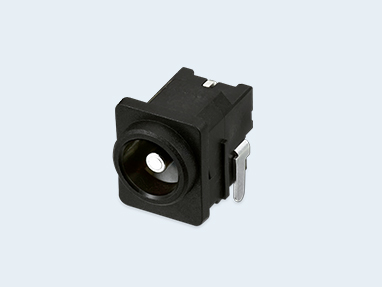

DC Power Supply Jacks
RoHS Compliant
Features
1. DC jack adapting for large and high voltage.
2. Country of Origin : Japan
2. Country of Origin : Japan
Specification
- Mounting Style
- DIP
- Mounting Direction
- Right Angle
- Rated Voltage AC/DC
- 19V DC, 5.3A
- Contact Resistance
- 50mΩ max.
- Insulation Resistance
- 100MΩ min. 500V DC
- Withstanding Voltage
- 250V AC (for one minute)
- Operating Temperature Range
- －30℃ to ＋80℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy
Application
Tablet, PC, Mobile devices, Automotive Equipment, Home appliances, Amusement
