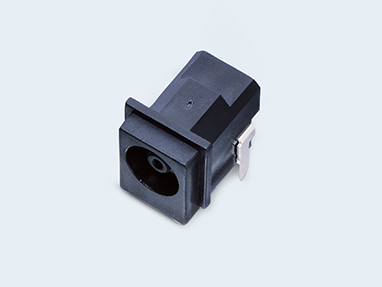

DC-5322
DC Power Supply Jack (JEITA RC-5322)
RoHS Compliant
Features
1. Conforms to the JEITA RC-5322 specifications (plugs and jacks for coupling DC 12/24V power supply to electronic equipment used in a car).
2. Country of Origin：China
2. Country of Origin：China
Specification
- Industrial Standard
- JEITA RC-5322 specifications [plugs and jacks for coupling DC 12/24V power supply to electronic equipment used in a car]
- Mounting Style
- DIP
- Mounting Direction
- Right Angle
- Rated Voltage AC/DC
- 24V DC, 2A max.
- Contact Resistance
- 30mΩ max.
- Insulation Resistance
- 100MΩ min. at 500V DC
- Withstanding Voltage
- 500V AC (for one minute)
- Operating Temperature Range
- －40℃ to ＋85℃
Material and Plating
- Housing
- Thermoplastic Resin
- Contact
- Cu Alloy
Application
Tablet, PC, Mobile devices, Automotive Equipment, Home appliances, Amusement
