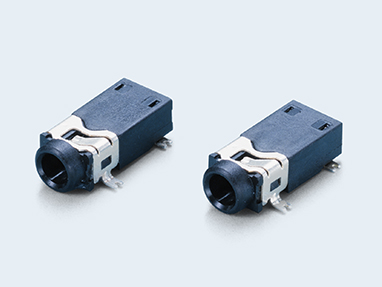

JK-25
2.5mm Dia. Jack
RoHS Compliant
Features
1. It is a small jack with a diameter of 2.5 mm.
2. SMD and DIP types are available.＜br＞ 3. Country of Origin：China＜br＞
2. SMD and DIP types are available.＜br＞ 3. Country of Origin：China＜br＞
Specification
- Applicable Plug Diameter
- φ2.5mm
- Number of Pins
- 3, 4
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- SMD, DIP
- Mounting Direction
- Right Angle
- Rated Voltage AC/DC
- 12V DC, 1A
- Contact Resistance
- 30mΩ max.
- Insulation Resistance
- 100MΩ min. at 500V DC
- Withstanding Voltage
- 500V AC (for one minute)
- Operating Temperature Range
- Please refer to the page of each part number.
Material and Plating
- Housing
- Thermoplastic Resin
- Sleeve Spring
- Cu Alloy
- Tip Spring
- Cu Alloy
Application
Mobile devices, Home appliances
