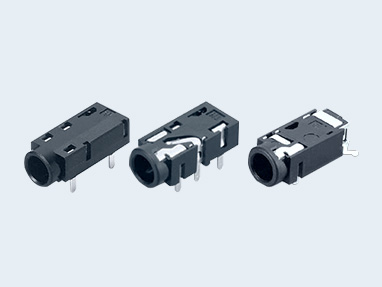

JK-35
3.5mm Dia. Jack
RoHS Compliant
Features
1. It is a small jack with a diameter of 3.5 mm.
2. A wide selection is available including SMD, DIP and Mid Mount types.
3. Country of Origin：China
2. A wide selection is available including SMD, DIP and Mid Mount types.
3. Country of Origin：China
Specification
- Applicable Plug Diameter
- φ3.5mm
- Number of Pins
- 3, 4
- Waterproof / Non-waterproof
- Non-waterproof
- Mounting Style
- SMD, DIP, Mid mount
- Mounting Direction
- Vertical, Right Angle
- Rated Voltage AC/DC
- 12V DC, 1A
- Contact Resistance
- 30mΩ max., 50mΩ max
- Insulation Resistance
- 100MΩ min. at 500V DC
- Withstanding Voltage
- 500V AC (for one minute)
- Operating Temperature Range
- Please refer to the page of each part number.
Material and Plating
- Housing
- Thermoplastic Resin
- Sleeve Spring
- Cu Alloy
- Tip Spring
- Cu Alloy
Application
Smartphones, Tablet, PC, Mobile devices, Automotive Equipment, Home appliances, Amusement
No applicable products
JK-35 Product List
--Result(s)
| Parts No. |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|---|---|
| ${item.field_tekigo_plug_kei} | ${item.field_kyoku_su} | ${item.field_switch} | ${item.field_jisso_hoho} | ${item.field_suisyo_jisso} | ${item.field_jisso_hoko} | |||
