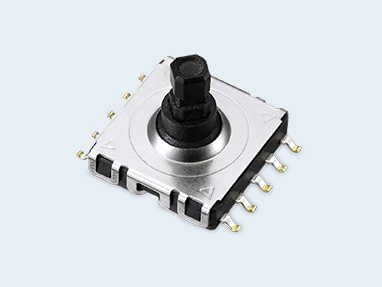

JXSIII
Multi-Way Switches
RoHS Compliant
Features
1. A multi-functional switch capable of function selection in 4 directions and entry of the selected function.
2. Sharp index feedback is ensured by the metal contact structure employed.
3. Low-profile design with a height of 2.3 mm.
4. Country of origin : China
Specification
- Operating Force
- Tilt Direction：1.2N,Push Direction：3N
- Travel
- Tilt Direction：4°,Push Direction：0.2mm
- Circuit
- Lever SP4T Push SPST
- Dimention
- 10.0mm(W) × 10.7mm(D) × 9.0mm(H)
- Rated Voltage AC/DC
- 12V DC, 20mA
- Life Cycle
- 50,000 cycles
