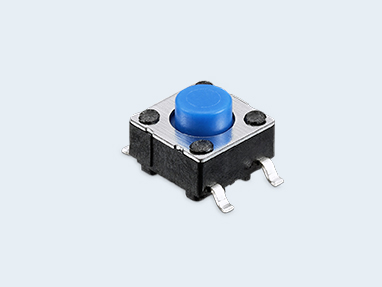

JPM1110-0801F
JPM(SMD)
MT Switches (SMD)
RoHS Compliant
Specification
| Features | 1. The MT switches are small and low-profiled and most suitable for high-density mounting. 2. Model with earth terminal is also available for static charges protection. 3. Country of origin : China |
|---|---|
| Application | Switches for operating various types of electronic video, audio, office automation, communication, and measuring equipment. |
| With/Without Ground Terminal | With |
| Operating Force | 1,2N |
| Travel | 0.2mm |
| Circuit | SPST |
| Dimention | 5.1mm(W) × 5.3mm(D) × 2.9mm(H) |
| Operating Temperature Range | -20 to +70'℃ |
| Installation Method | PWB mounting |
| Rated Voltage AC/DC | 12V DC, 10mA |
