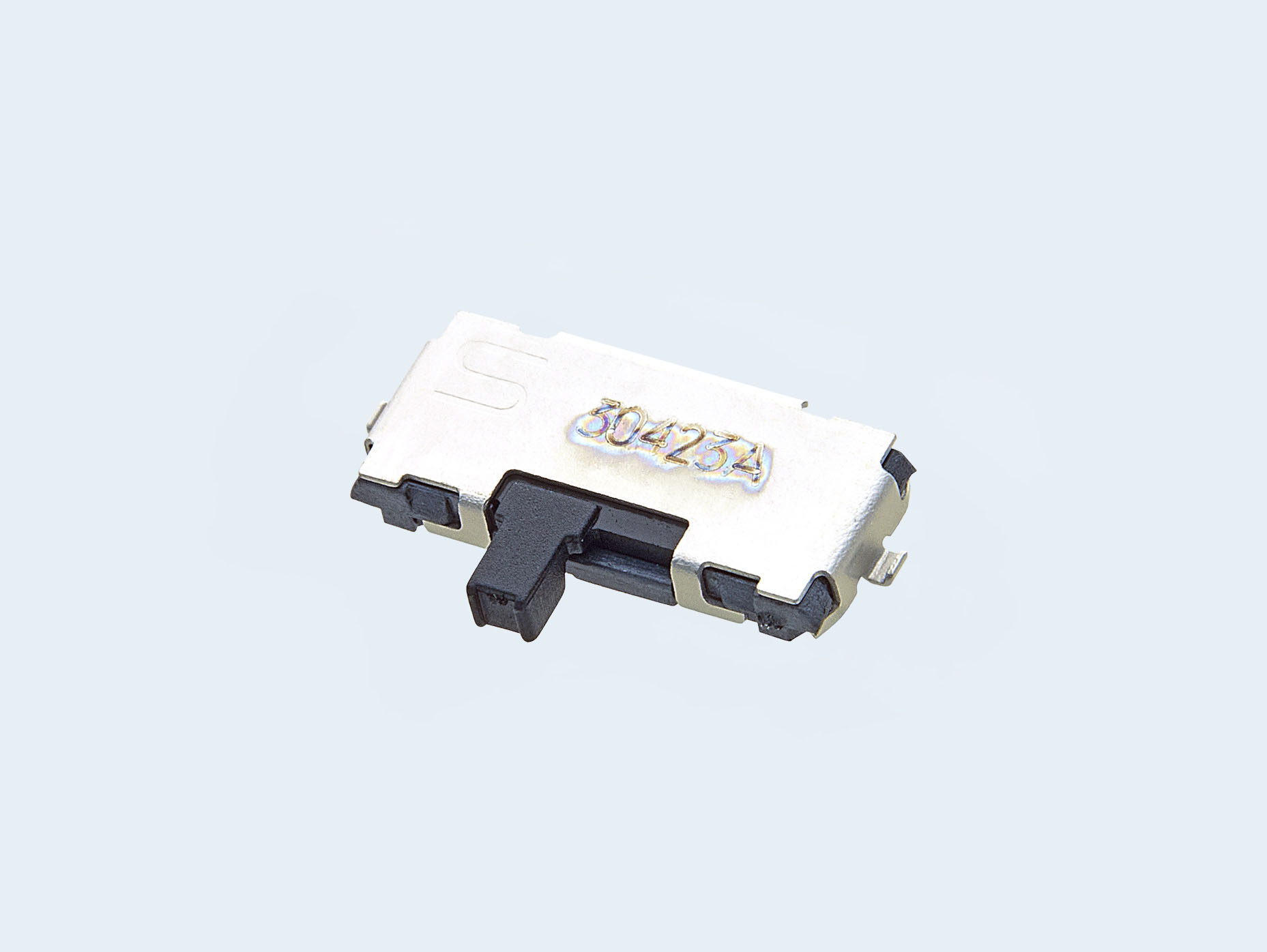

JSD1200-0211F

JSD
Slide Switches (Thin Type)

RoHS Compliant

Features	1. With a thickness of 0.9mm, it contributes to a thinner device design. 2. The PCB mounting area is 29.33 mm², supporting high-density assembly. 3. Two knob orientations are available: vertical and horizontal. 4. Country of origin: China
Operating Force	1.5N
Travel	1.25mm
Circuit	SPDT
Dimention	6.9mm(W) ×2.9mm(D) ×0.9mm(H)
Operating Direction	Horizontal type
Rated Voltage AC/DC	6V DC, 10mA
Bulk/Reel	Reel

--Result(s)

Parts No.	Operating Force	Travel	Dimention	Rated Voltage AC/DC	Bulk/Reel

${item.title}	${item.field_sado_ryoku}	${item.field_stroke}	${item.field_gaikei_sunpo}	${item.field_teikaku_denatsu_denryu}	${item.field_single_reel}
