| Series | JK-25 |
|---|---|

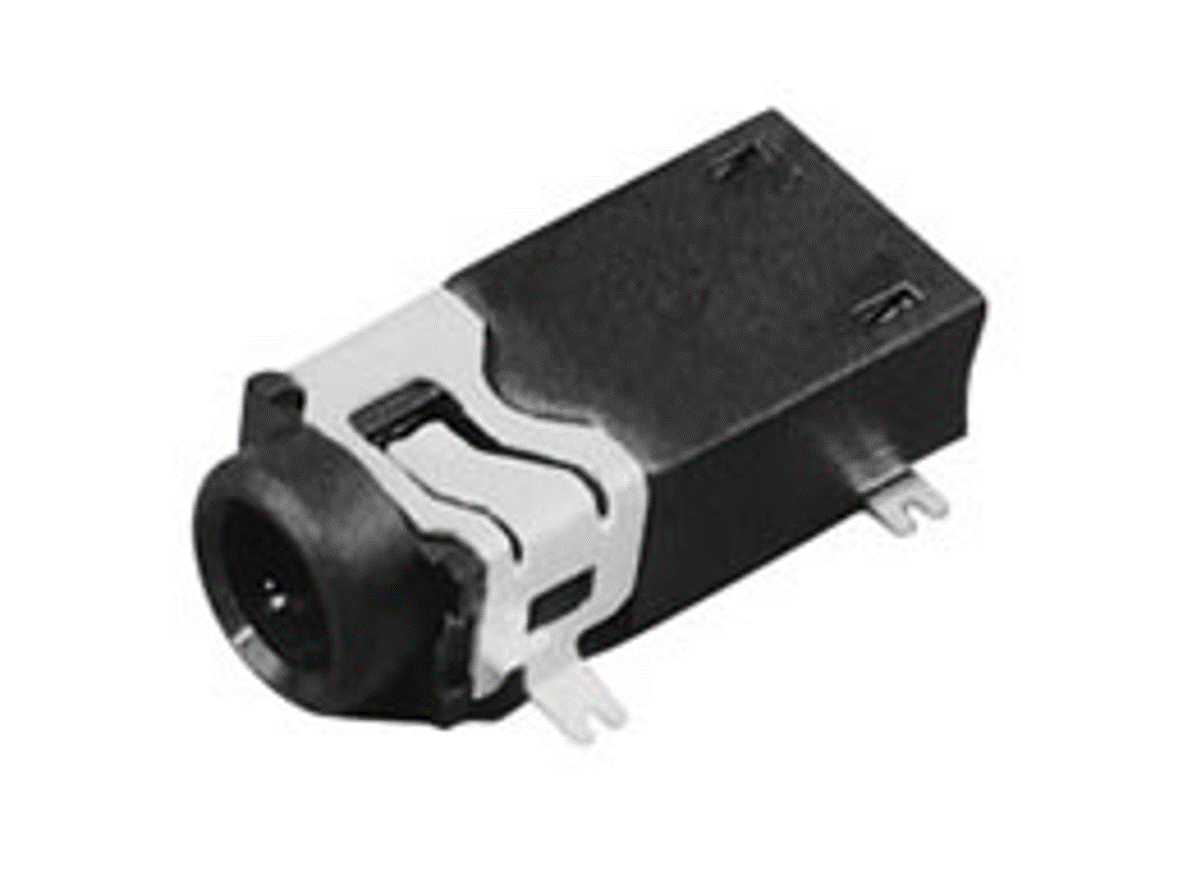

| Product Name | 2.5mm Dia. Jack |
| Parts No. | LGK1709-1601F |
| Outline・Feature |
|
| Application | Smart phones, mobile phones, portable audio , other small AV equipment. |
| Standard | － |
| External Dimension | Width: 11.5 mm Depth: 5 mm Height: 3.4 mm |
| Packaging | Emboss Taping（1,000 pcs／reel） |
| Applicable Plug Diameter | 2.5mm |
|---|---|
| Number of Pins | 3 |
| Mounting Method | SMD |
| Terminal Shape | Right angle |
| Rating | 1A, 12V DC |
| Contact Resistance | 30mΩ Max. |
| Insulation Resistance | DC500V 100MΩ Min. |
| Withstanding Voltage | AC500V (for one minute) |
| Operating Temperature Range | －40℃ ～ ＋85℃ |
| Housing | Tｈermoplastic Resin |
| Sleeve Spring | Cu Alloy |
| Tip Spring | Cu Alloy |
| Mounting Method | SMD |
| Switch | with |
| Recommended Layout | Reflow soldering |
Specification is subject to change without prior notice for improving performance of the product and so on.
Dimensions and specifications described herein are limited to major items.
When applying the product, please confirm details in the drawing and spec sheets which will be provided upon request.
