415CPB-238-50F

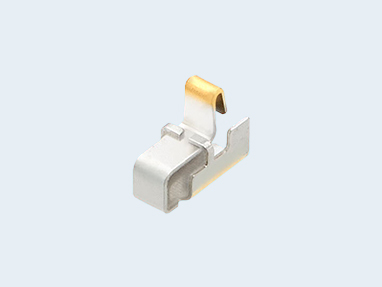

ET-20
Earth Terminal

RoHS Compliant
415CPB-238-50F
Product Inquiry

Specification

Features

1. The earth terminals are of a low contact pressure type with electro-conductivity coated shell molds.
2. Designed for SMT operations, supply on embossed tapemakes it possible to mount the terminals automatically.
3. Low contact pressure allow for multiple use of the terminals.
4. Compact and light-weight equipment design can be realized with the terminals.
5. Custom needs are available.
6. Country of Origin：China
Application
Automotive Equipment, Industrial Equipment, Home appliances, Amusement, Mobile devices
Contact
Top
Height
2.5mm
Operating Height
1.5～2.3mm
Dimention
Length: 3.0mm Width: 1.5mm Height: 2.5mm
Contact Pressure
0.25～1.90N
Rated Voltage AC/DC
5V DC, 0.5A
Contact Resistance
50mΩ Max.
Operating Temperature Range
-40℃ to +85℃
Packaging
Embossed Taping (5000 pcs / reel）

Material and Plating

Contact
Cu Alloy, Au Plating
