CFF5740-01XXF
FV-1B

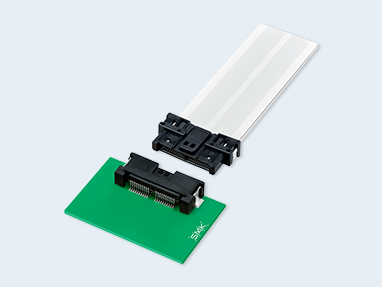

2 Piece Type FPC/FFC Connectors
RoHS Compliant
Specification
| Features | 1. Has a two-piece structure which locks using receptacle and plug housing. 2. Highly reliable and stable connection using SMK's original contact structure. 3. Low profile design with 8.0mm mating height. 4. The housing cover prevents direct touch with FPC/FFC PAD surface when mating. 5. A cover is potional to the soldering area as a foreign object prevention measure for the board/FPC mounting area. 6. Country of Origin：China ･Part number XX：Differs by key codes. Please contact us for more information. |
|---|---|
| Application | Automotive Equipment, Industrial Equipment |
| Pitch | 1.0mm |
| Number of Pins | 40 |
| Contact | Upper and lower contacts |
| Mounting Style | SMT |
| FPC/FFC Insertion Direction | － |
| Dimention | Length: 38.0mm Width: 15.0mm Height: 8.0mm |
| Mounting Height | 8.0mm |
| Applicable FPC/FFC Thickness | － |
| FPC/FFC Connection | － |
| Rated Voltage AC/DC | 100V DC, 1A |
| Contact Resistance | 30mΩ max. |
| Insulation Resistance | 100MΩ min. at 500V DC |
| Withstanding Voltage | 500V AC (for one minute) |
| Operating Temperature Range | -40℃ to ＋105℃ |
| Packaging | Embossed Taping (400 pcs / reel） |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Cover | － |
| Contact | Cu Alloy, Au Plating |
| Lever | － |
| Hold Down | Cu Alloy, Sn Plating |
