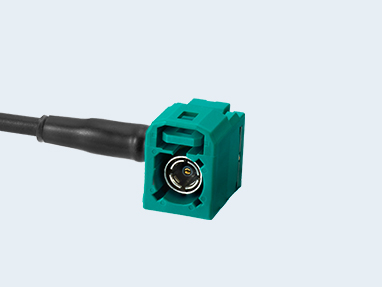

CZF2100-0201F

Specification

Features	1. Complete connection is ensured by the push-on mold locking structure. 2. Key codes are available in different colors for different connection. 3. Complies with ISO20860-1,ISO20860-2,DIN72594-1,DIN72594-2,SAE/USCAR-17, and SAE/USCAR-18. 4. Waterproof type is also available (mating waterproof of IPX7). 　 Plug for PCB：CRC5001-74XXF 　 Cable Plug：CRC1001-57XXF 　 Cable Jack：CRS9001-45XXF, CRS9001-38XXF, CRS9001-46XXF, CZF2100-02XXF, CZF2100-03XXF, CZF2100-13XXF 5. Cable Jack : Multiple cable pull-out directions are available.  　 CRS9001-46XXF, CZF2100-02XXF, CZF2100-03XXF, CZF2100-13XXF 6. Reduces the piece part numbers and contributes to improving assembly workability. 7. Country of Origin：China 　 ･Part No. XX：Differs by key codes and colors. Please contact us for more information. ･The CAD data part numbers are listed at the end 01F.
Application	Automotive Equipment, Industrial Equipment
Type	External Connector for Automotive device
Plug/Receptacle	Cable Jack
Frequency Range	DC to 6GHz
Nominal Impedance	50Ω
V.S.W.R.	1.4 max. (DC to 2GHz), 1.5 max. (2 to 3GHz), 1.6 max. (3 to 6GHz)
Insertion Loss	0.3dB max. (DC to 3GHz), 0.45dB max. (3 to 6GHz)
Dimention	Length: 15.0mm (Excluding cable and tube) Width: 11.0mm Height: 14.65mm
Mounting Height	－
Waterproof / Non-waterproof	Waterproof
Mounting Direction	－
Applicable Cable	1.5D
Rated Voltage AC/DC	60V AC/DC, 1A
Contact Resistance	15mΩ Max. (center contact), 5mΩ Max. (external contact)
Operating Temperature Range	-40℃ to ＋105℃
Mating Cycle Life	30 cycles

Material and Plating

Housing	Thermoplastic Resin
Terminal	Cu Alloy, Au Plating
