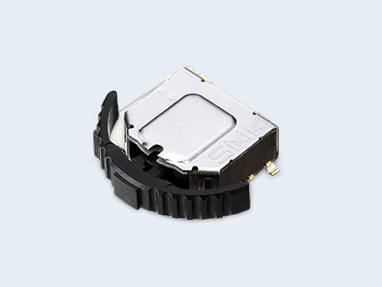

JLSsmall
Lever Push Switches (small type)
RoHS Compliant
Features
1. One unit of this switch is sufficient for both function selection and entry of the selected function.
2. J-Lead type terminals located on the side of the body of the horizontal type help downsize equipment.
3. Two options of a keytop-inclusion type and cap type are available.
4. A long life of 1,000,000 cycles is also available.
5. Country of origin : China
Specification
- Operating Force
- Rotation 1.4N, Push 2.5N
- Travel
- On 0.5mm, Full 0.8mm
- Circuit
- Rotation SPDT, Push SPST
- Rated Voltage AC/DC
- 5V DC, 10mA
- Durability
- 100,000 cycles, 1,000,000 cycles
