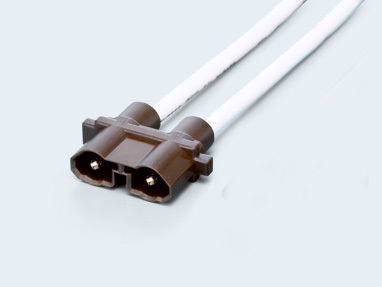

CCT9402-5801F
LC-3
Lamp Connectors
RoHS Compliant
Technical Information Data
Specification
| Features | 1. This is a high-voltage connector for lamps capable of handling an DC voltage of up to 25kV（peak）. 2. This compact connector design is an ideal choice for downsized equipment. 3. Country of Origin：Japan（Harness products：Japan, China） |
|---|---|
| Application | Lighting equipment |
| Industrial Standard | － |
| Number of Pins | － |
| Dimention | Length: 22.2mm Width: 30.2mm Height: 8.7mm |
| Mounting Direction | － |
| Applicable Electrical Wire | － |
| Rated Voltage AC/DC | 250V AC, 10A |
| Contact Resistance | 20mΩ Max. |
| Insulation Resistance | DC 500V 1000MΩ Min. |
| Withstanding Voltage | DC 25V (for one minute) |
| Operating Temperature Range | -20℃ to +150℃ |
| Mating Cycle Life | － |
| Packaging | Bulk |
Material and Plating
| Housing | Thermoplastic Resin |
|---|---|
| Contact | Cu Alloy, Sn Plating |
